5049 12V DC Igniter - Replaces 7435U
4.6 (67 items)
Limited Time SaleUS$59.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220050761 | Release Date | 2026/05/03 | List Price | US$39.60 | Model Number | 220050761 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

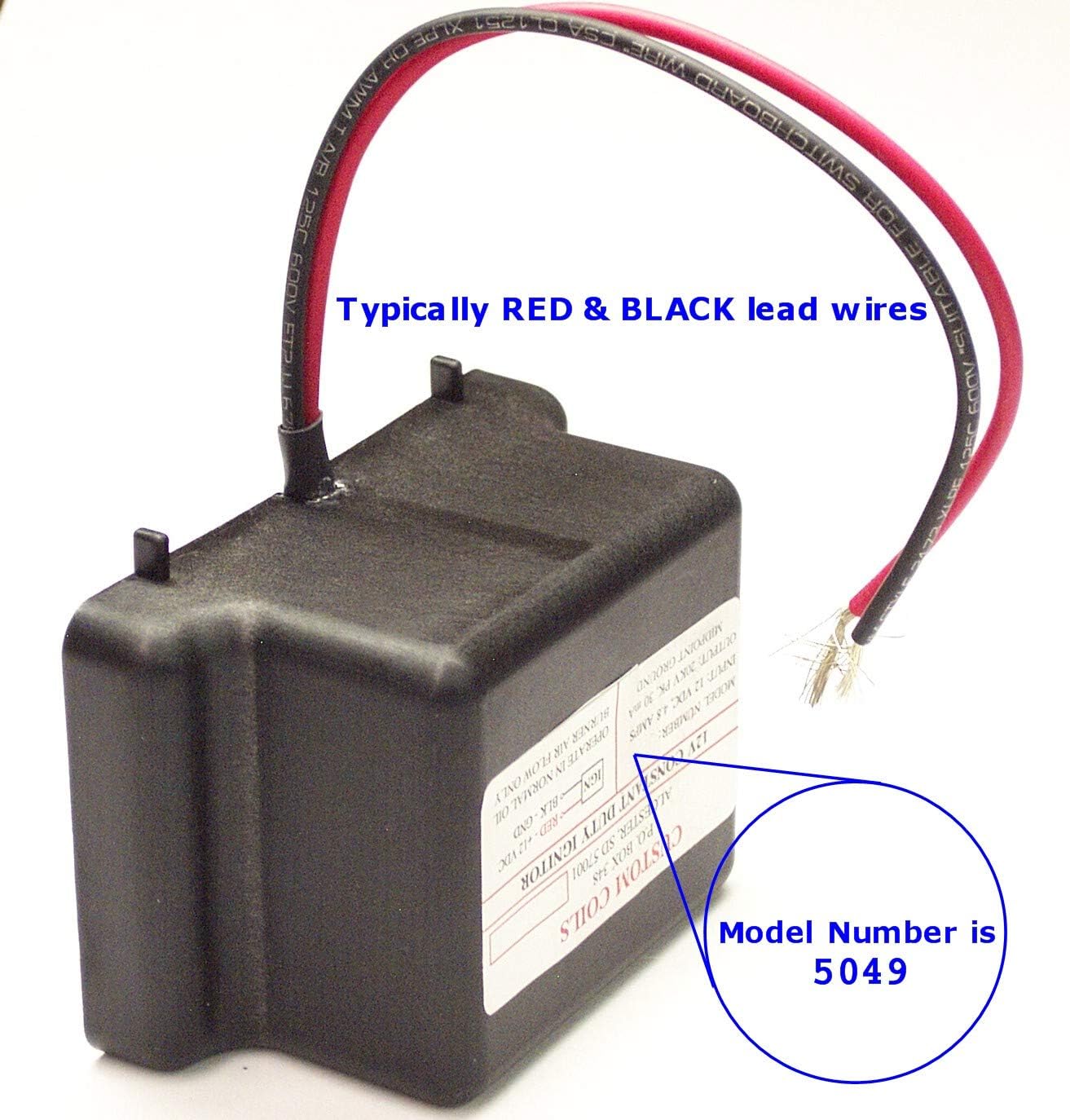

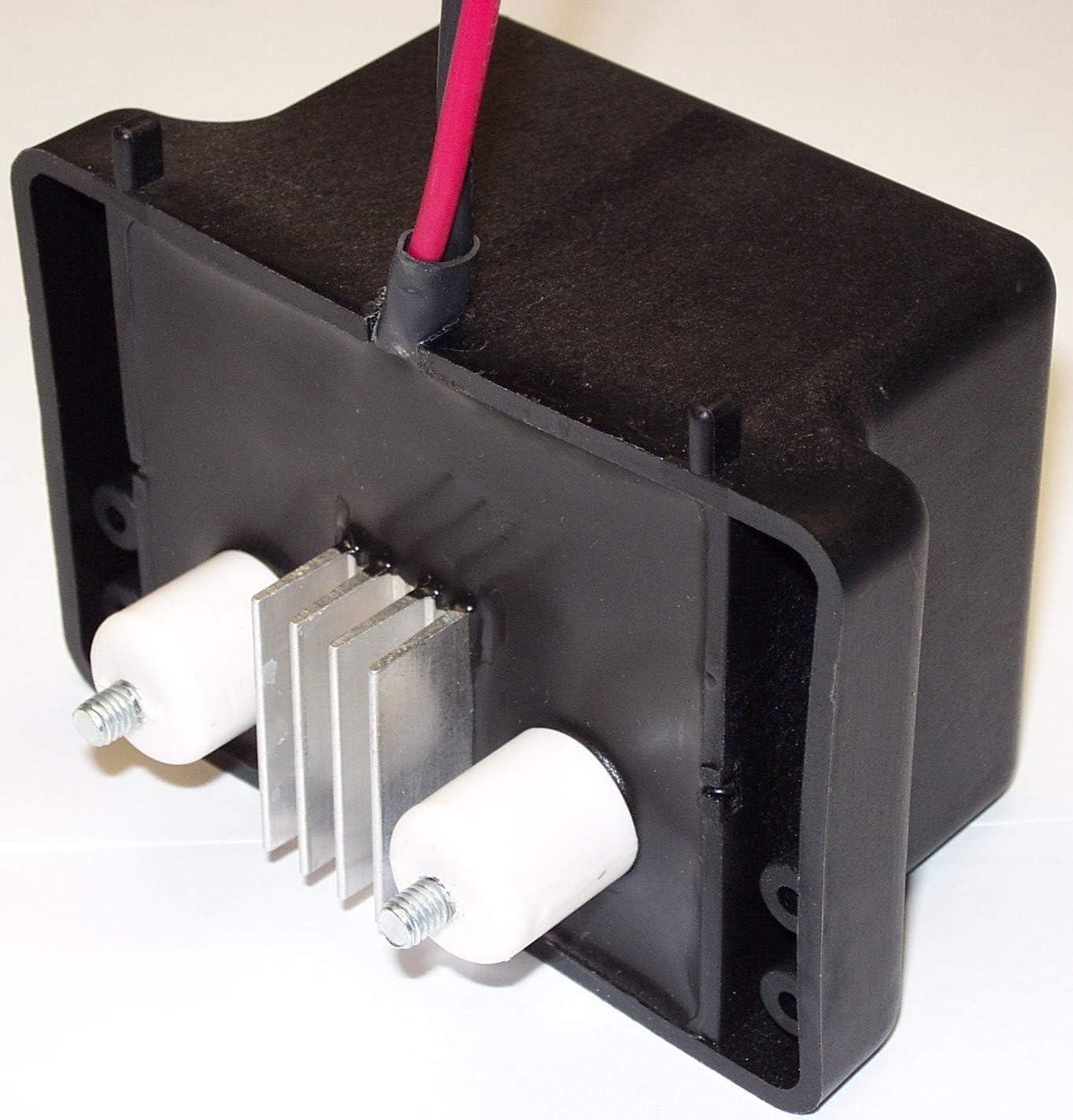

You are purchasing one 12VDC Igniter ONLY!! No Control Board (CB), no sensor and no hardware. This is a model# 5049 (SKU# 7435U) igniter and is a 12V DC initiated igniter (as opposed to 120VAC). This item is commonly found on heated pressure washer and steam cleaner burners used in various industries. This igniter can be adapted to multiple base plates to accommodate Beckett ADC & SDC burners. Features and Specifications: Input Voltage Range: +10.5V to +15V DC Nominal Input: +12V DC @ 4.8 amps Output: 20KV pk, 30ma Operating Temperature: -20C to 60C Minimum Operating Time with No Airflow: 5 minutes Weight: 1.2LBs nominal Internal Reverse Polarity Protection Internal Transient Voltage Protection Internal Midpoint Ground Other Design Elements: Input leads exit from the rear edge of the module for mounting ease Module mounts on rear and side hinged plates Custom Coils builds DC igniters for several different industries and applications. We are the US based manufacturer of this igniter. Heated pressure washers Steam cleaning applications DC HVAC industries. Tar Buggies Applications: Burners Heated pressure washers Steam cleaning applications DC HVAC industries. Tar Buggies
- 12V DC Igniter
- Output: 20kV pk, 30mA
- Internal Midpoint Ground
- Internal Reverse Polarity Protection
| Manufacturer | Custom Coils |
|---|---|
| Package Dimensions | 8 x 6 x 5 inches |
