1 Pc 6000K Daylight White LED Sheet for Backlighting, 24V 28W 19.2"x9.6" Slim Flexible Cuttable Connectable LED Sheet Light, Connectors and Adhesive Backing (Daylight White 6000K)

SuperLightingLED flexible and cuttable LED sheet operates at 24V and emits 6000K daylight white light. The illumination is bright and even, without dark area. Several sheets can be linked to backlight wide translucent materials such as marble countertops and onyx walls. Specifications: Light Color: 6000K Daylight White Sheet Size: 490mm(L)X245mm(W)X8mm(H) / 19.2”(L)X9.6”(W)X0.3”(H) LED Chip: SMD 2835 LED Quantity: 242 LED Chips Input Voltage: DC24V Working Power: 28W per Sheet Current: 1.16A Cut Unit: 1 LED (0.87"x 0.87") Waterproof Rating: IP20 Luminous: 2438LM CRI: 90+ Lifespan: 50,000+hours Listing: 1 pc 6000K daylight white LED light sheet (L19.2 x W9.6 x H0.3 inches) 2 pcs 150 mm long connecting wires 2 pcs 50 mm long connectors 8 pcs screws 8 pcs screw shims 8 pcs 8mm anti-collision silicone pads Please note that power transformer and controller are not included. Usage and Instructions: 1.Measure the size of the board you want to paste LED backlight sheet on, and determine the size and quantity of LED sheets you need to purchase accordingly. 2.Connect LED sheet lights together by wire or connector 3.Choose right power supply and controller for LED panel sheet. Principle: The voltage of the power supply should be the same as the voltage of LED sheet. And the driver wattage should be 1.2 times the the total wattage of LED sheets. For example, when you need to power 4 pieces of 24V 28W LED lighting sheets, the voltage of power supply should the same, also 24V. And the total wattage of 4 pieces 28W LED sheets is 4pcs x 28W=112W. So the wattage of power supply will be 112W x 1.2=135W. (Or a little bit above) Recommend WB5 model to adjust brightness. 4.Connect power supply and controller to LED light sheet panel, turn them on and ready for use. Note: 1.Please operate the connection while the power is off. 2.Please make sure that the working environment is clean and dry. 3.Please kindly prepare a 24V power transformer in advance, as it is not included. 4.If you need to adjust brightness of this sheet LED, a dimmer is necessary.

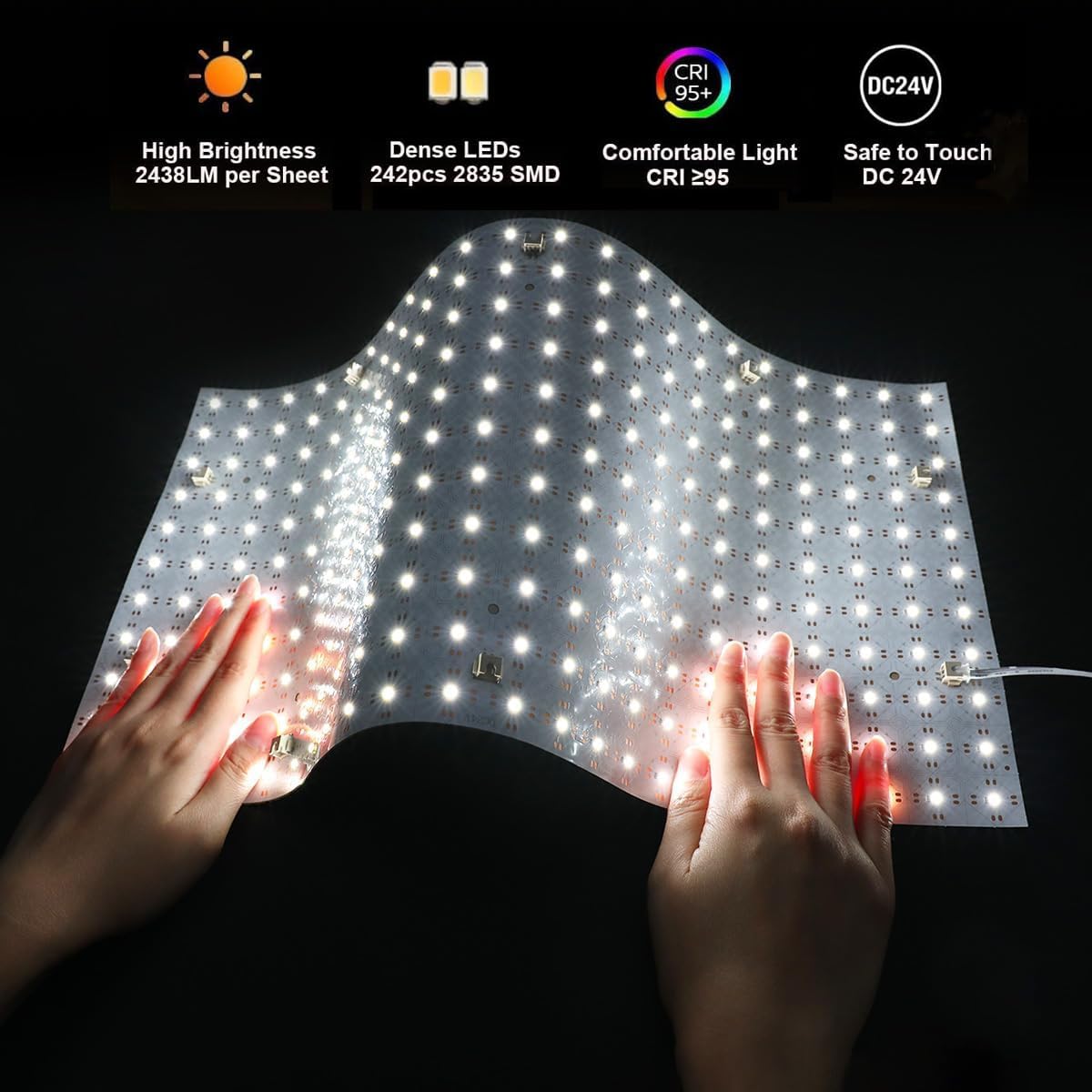

• 【SuperLightingLED 6000K LED Sheet, Safe to use】This LED light sheet contains 242 LED chips, emitting bright 6000K daylight white light. The illumination is even and stable, with no dark areas. Operating at a low 24V voltage, sheet LED is safe to touch. However, you will need to purchase an extra 24V power transformer to drive it. If you want to adjust the brightness, a controller is also required.

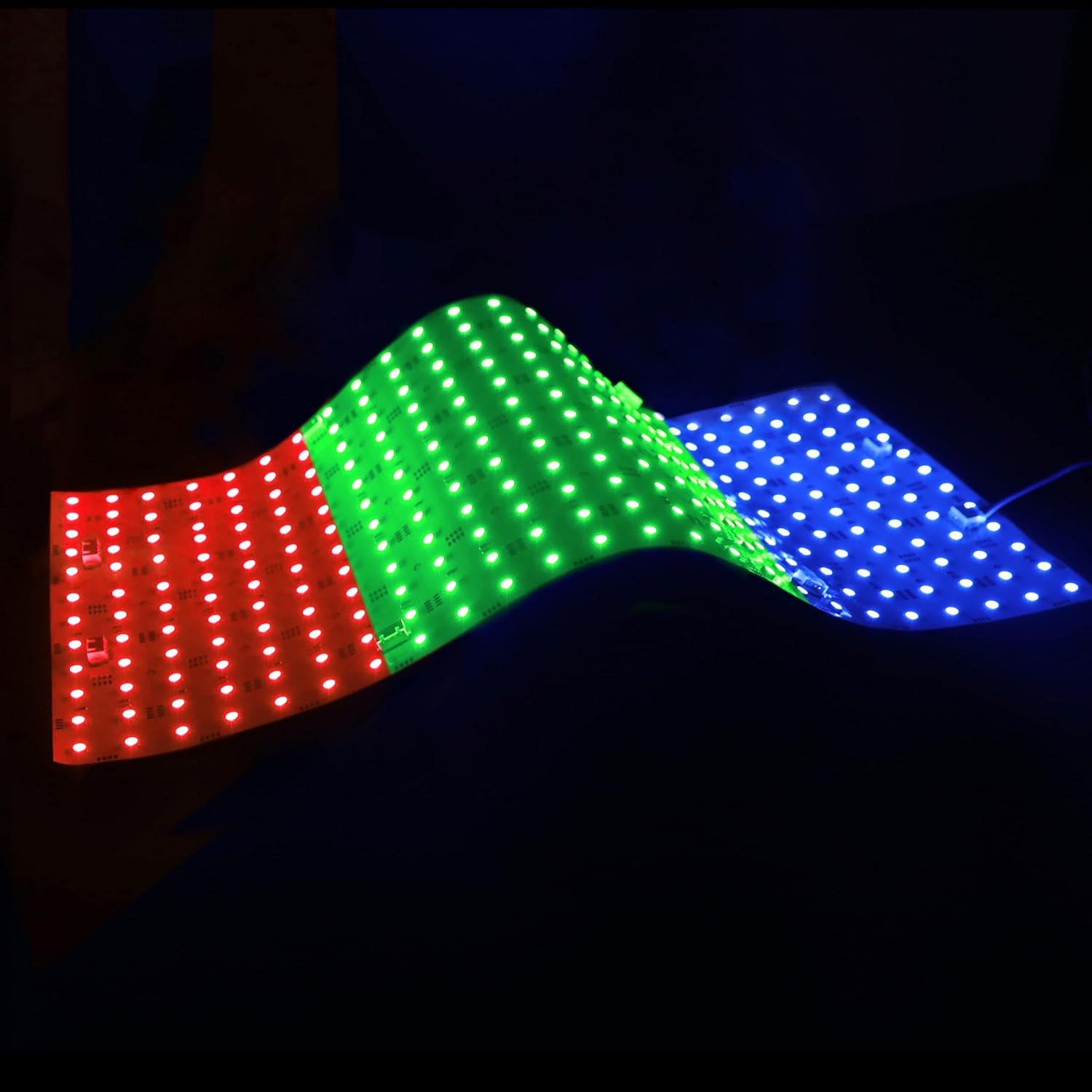

• 【Paper-Thin, Flexible, and Cuttable】Paper-thin LED light sheet is lightweight and easy to carry. Double-layer FPC material ensures a stable circuit connection. Additionally, this flat LED sheet is highly flexible, can be bent or folded to fit curved surfaces or square corners. Each LED chip can be cut with scissors. There are black guidelines marked on the board. Easy to customize size and irregular shapes.
• 【Connectable for Broad Area Illumination】Multiple LED lighting sheets can be interconnected, making them ideal for backlighting large areas of walls, ceilings, and tables. 8 plug-and-play connectors (8mm high) are mounted on the top of each light sheet, making super easy connections. One connector can link up to 5 LED sheets in series. No need for soldering.
• 【With Accessories, Easy to Install】Flexible LED sheet features a strong adhesive backing. Peel off and stick on to complete secure installation. This LED sheet also includes small holes for nail installation. For added convenience, we will ship 2 connection pieces, 2 wires, 8 impact-resistant silicone particles, 8 screws, and 8 screw shims with this 6000K white LED sheet.

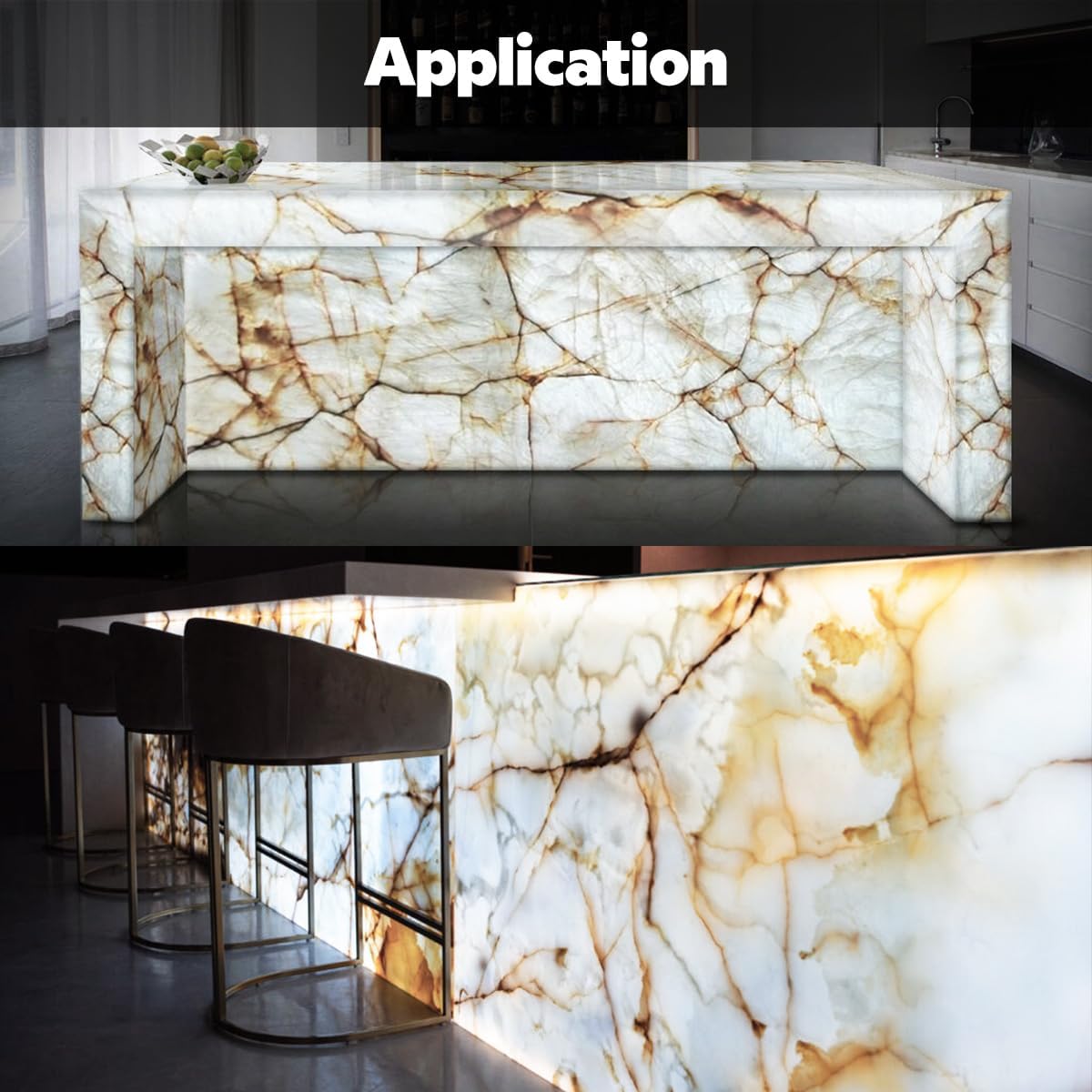

• 【Wide Applications】This LED light sheet has a wide range of applications, mainly used for backlighting translucent materials such as marble, onyx, stained glass, and acrylic. They are perfect for settings like homes, hotels, and shopping malls. You can also cut it into special shapes for signage and logo lighting.
